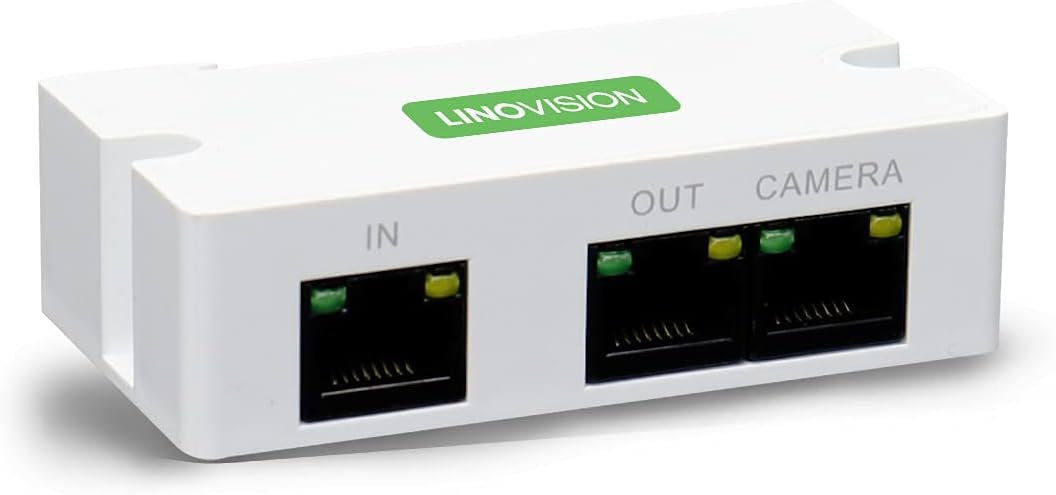

2 Port POE Extender Repeater Power Over Ethernet X1092
Sale price
$11.99
Regular price $43.63
Skip to product information

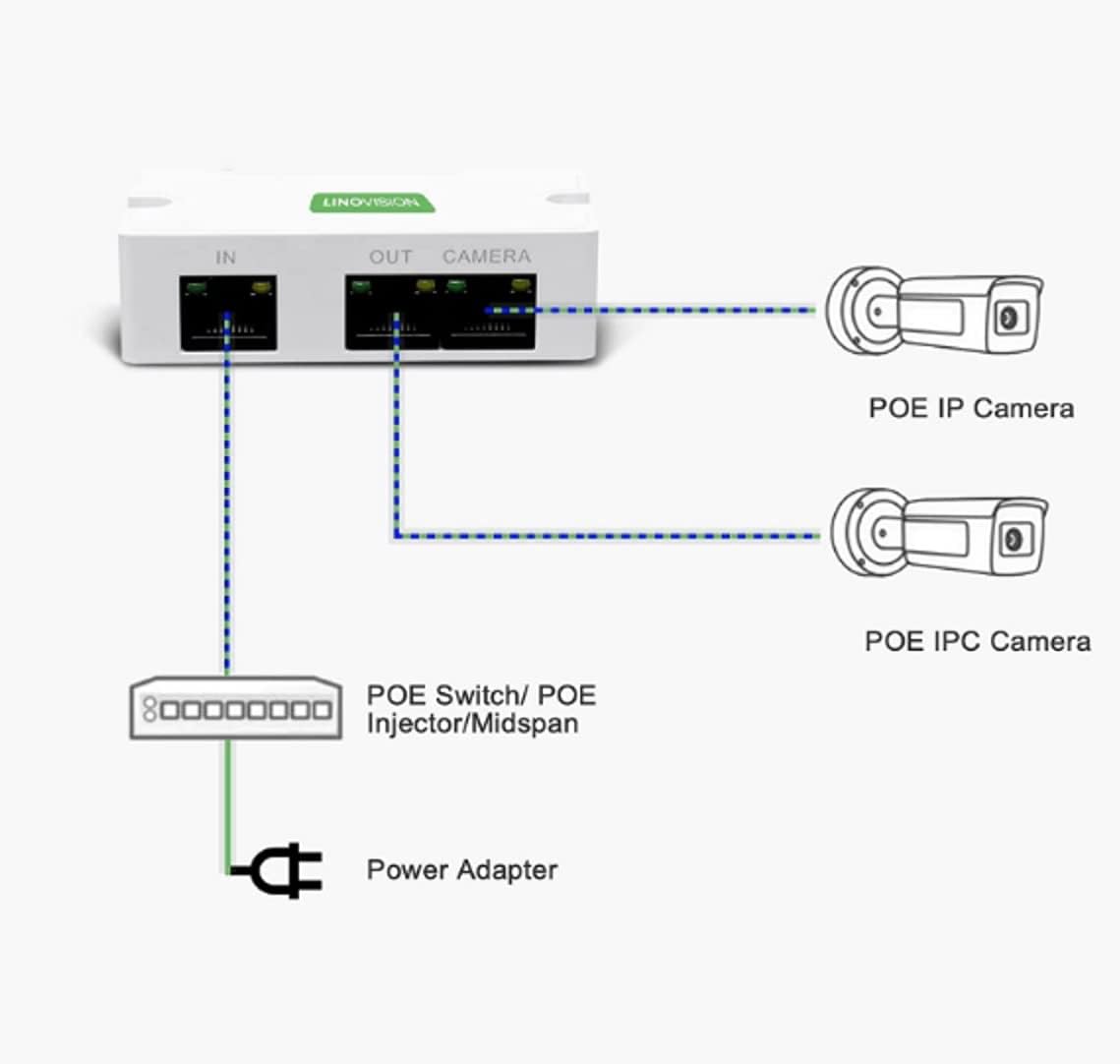

【PASSIVER 2-PORTS POE SPLITTER】This 2 ports POE extender is designed to supply POE power to two POE devices through one Cat5/6 cable, and no power adapter is required. It is powered by PoE devices (48V or 53V PoE Switch/PoE NVR/PoE Injector/Mid-span). With this POE splitter, the cabling cost can be dramatically reduced. Moreover, users can easily add extra POE device (like IP cameras, wireless AP or IP phones) to existing POE cable without running a new cable.

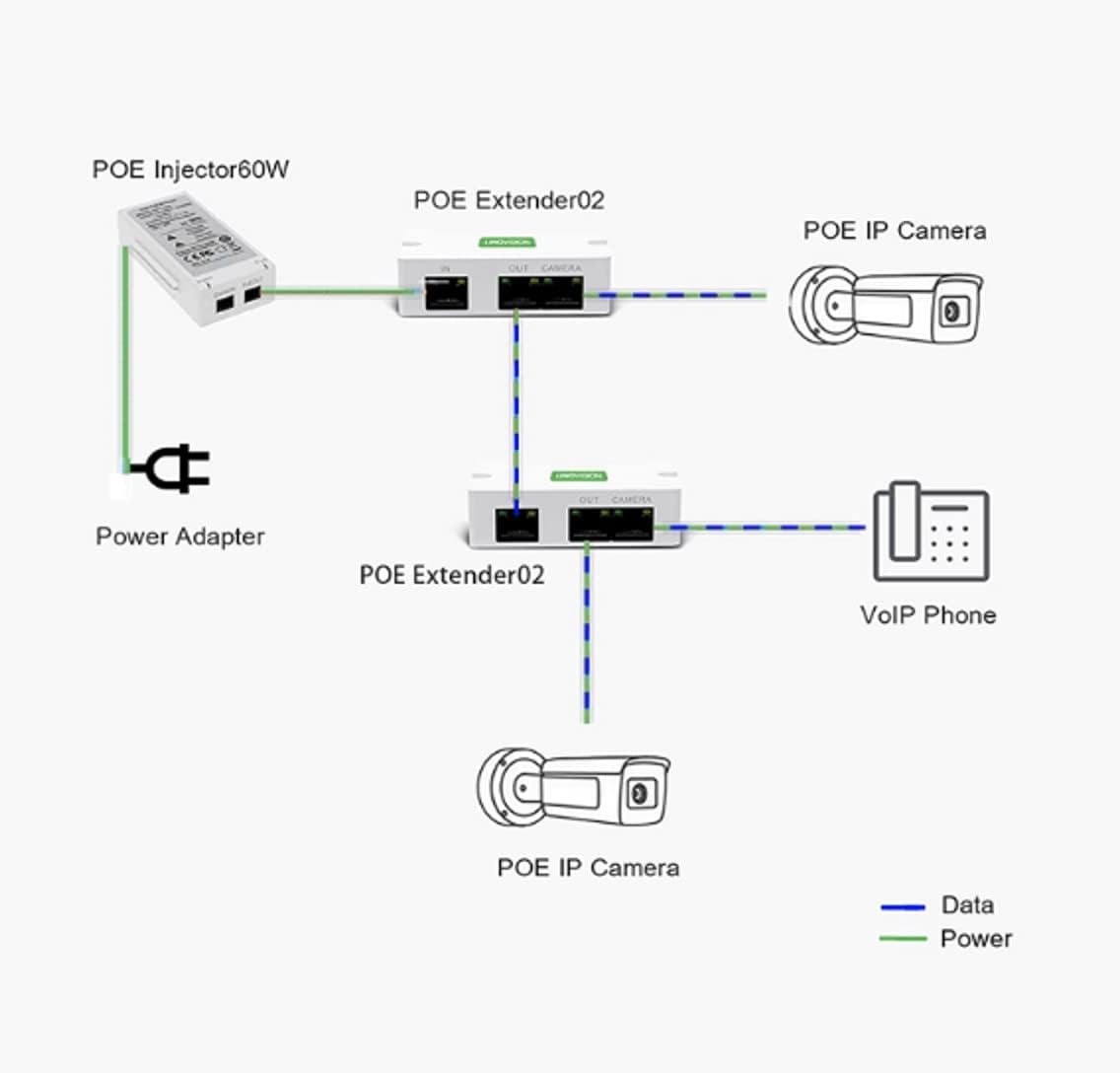

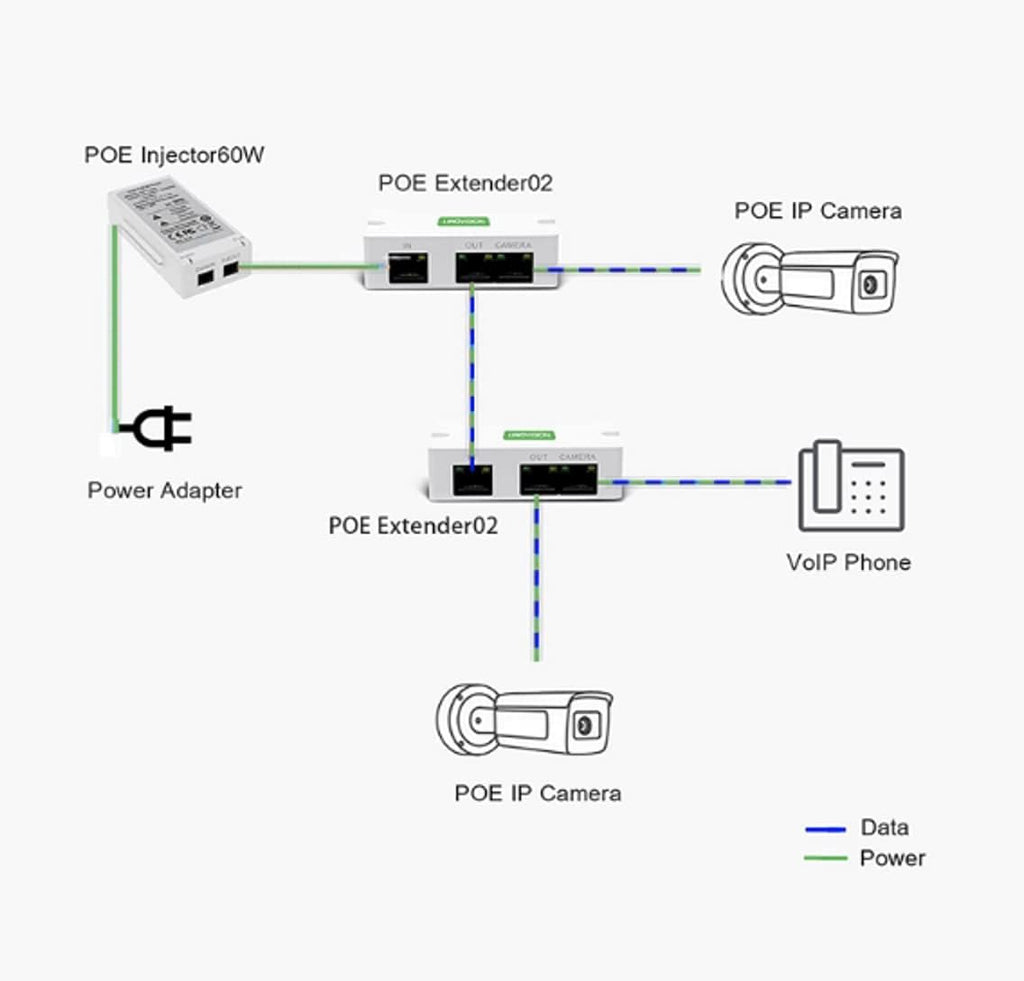

【UP TO 1,000FT POE + DATA EXTENTION】Extra 330ft POE+Data transmission will be extended with one Linovision POE Extender. And it supports two levels cascade deployment, therefore total 1,000ft POE + Data transmission is provided. (The 2nd POE Extender’s POE Input should be connected to the 1st POE Extender’s Out port, not Camera port)
【COMPLIANT TO IEEE802.3AF/AT STANDARD】This POE Extender works with all standard IEEE802.3af/at POE Switches, POE injectors or POE NVRs. And the POE Outputs supply power to standard POE devices, like POE IP security cameras, IP phones, wirelesss AP, IP Speakers, etc. The recommended power consumption per POE device is less than 8 Watt, and the max bandwidth is 100Mbps.

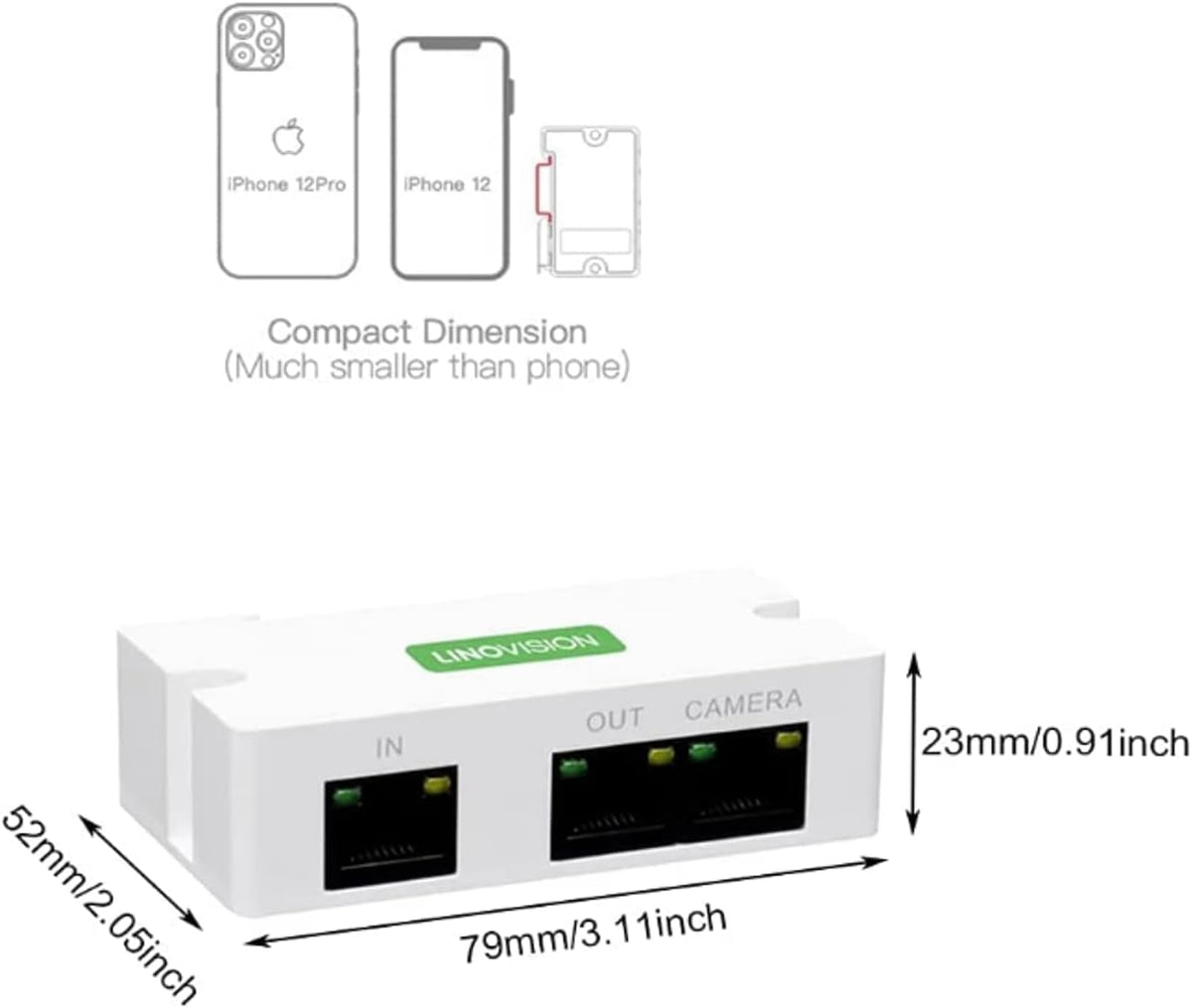

【PLUG-N-PLAY INSTALLATION】This POE Extender can be simply plugged with a POE cable from a standard IEEE802.3af/at POE Switch (or POE Injector / POE NVR), and then connect two POE devices to the output ports. No configuration or setup is required. With compact dimension ( 3.1”* 2” * 1”), enough to fit many junction boxes or outdoor waterproof enclosures.
【WORRY FREE】1 year warranty, US local technical support + Global after-hour support.
2 Port POE Extender Repeater Power Over Ethernet X1092
Sale price
$11.99
Regular price $43.63
Shipping calculated at checkout.
【PASSIVER 2-PORTS POE SPLITTER】This 2 ports POE extender is designed to supply POE power to two POE devices through one Cat5/6 cable, and no power adapter is required. It is powered by PoE devices (48V or 53V PoE Switch/PoE NVR/PoE Injector/Mid-span). With this POE splitter, the cabling cost can be dramatically reduced. Moreover, users can easily add extra POE device (like IP cameras, wireless AP or IP phones) to existing POE cable without running a new cable.
【UP TO 1,000FT POE + DATA EXTENTION】Extra 330ft POE+Data transmission will be extended with one Linovision POE Extender. And it supports two levels cascade deployment, therefore total 1,000ft POE + Data transmission is provided. (The 2nd POE Extender’s POE Input should be connected to the 1st POE Extender’s Out port, not Camera port)
【COMPLIANT TO IEEE802.3AF/AT STANDARD】This POE Extender works with all standard IEEE802.3af/at POE Switches, POE injectors or POE NVRs. And the POE Outputs supply power to standard POE devices, like POE IP security cameras, IP phones, wirelesss AP, IP Speakers, etc. The recommended power consumption per POE device is less than 8 Watt, and the max bandwidth is 100Mbps.
【PLUG-N-PLAY INSTALLATION】This POE Extender can be simply plugged with a POE cable from a standard IEEE802.3af/at POE Switch (or POE Injector / POE NVR), and then connect two POE devices to the output ports. No configuration or setup is required. With compact dimension ( 3.1”* 2” * 1”), enough to fit many junction boxes or outdoor waterproof enclosures.
【WORRY FREE】1 year warranty, US local technical support + Global after-hour support.
| PoE-Extender02 | POE-Extender02WP | POE Extender02GP | POE-Injector 30W | POE-Injector 95W(For Cascaded Deployment) | |
|---|---|---|---|---|---|
| PoE++ / IEEE802.3bt | ✓ | ||||
| PoE+ / IEEE802.3at and PoE / IEEE802.3af | ✓ | ✓ | ✓ | ✓ | ✓ |
| Ethernet | 10/100Mbps | 10/100Mbps | 10/100/1000Mbps | 10/100/1000Mbps | 10/100/1000Mbps |
| Transmission Distance | Supports cascade deployment, max 300m (1000ft) transmission | Supports cascade deployment, max 300m (1000ft) transmission | Supports cascade deployment, max 300m (1000ft) transmission | ||
| POE Port | 1 in 2 out | 1 in 2 out | 1 in 2 out | ||
| Water-proof | IP67 | IP67 | |||
| Power Consumption | <=3W | <=3W | <=3W | ||
| Working Temperature | -30°C to 65°C (-22 °F to 149 °F) | -30°C to 65°C (-22 °F to 149 °F) | -40°C to 75°C (-40 °F to 167°F) | ||

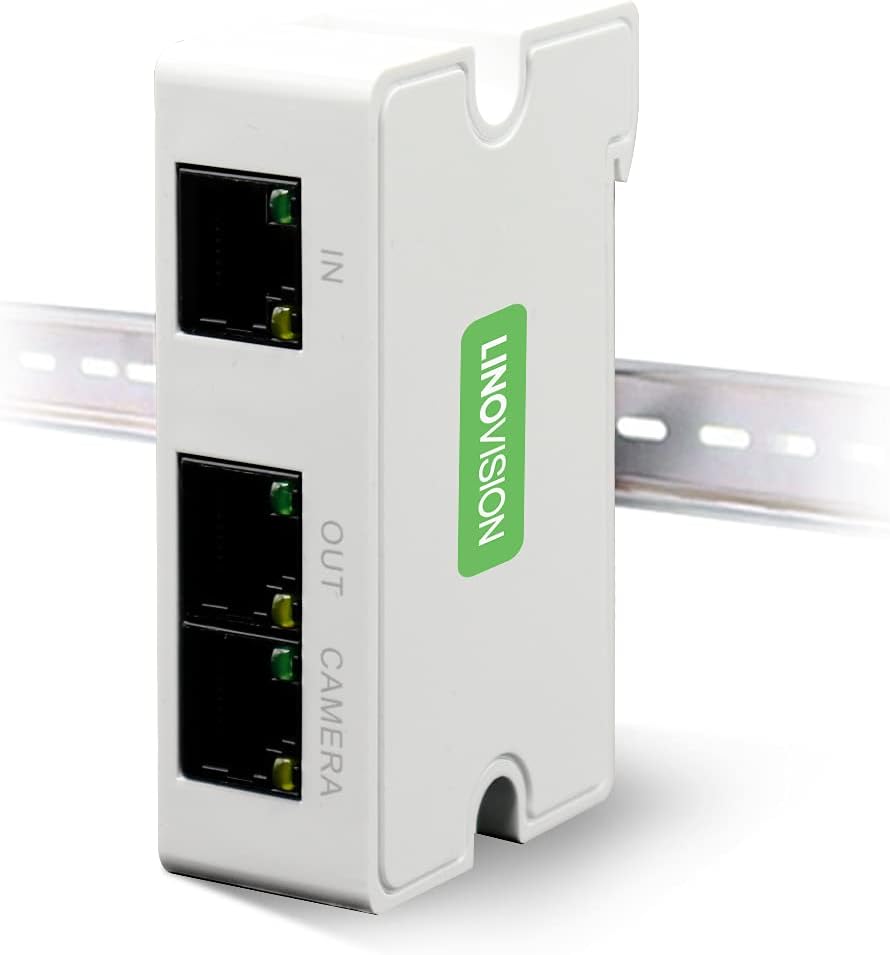

| Installation | Din-rail, Wall mount | Wall mount |
