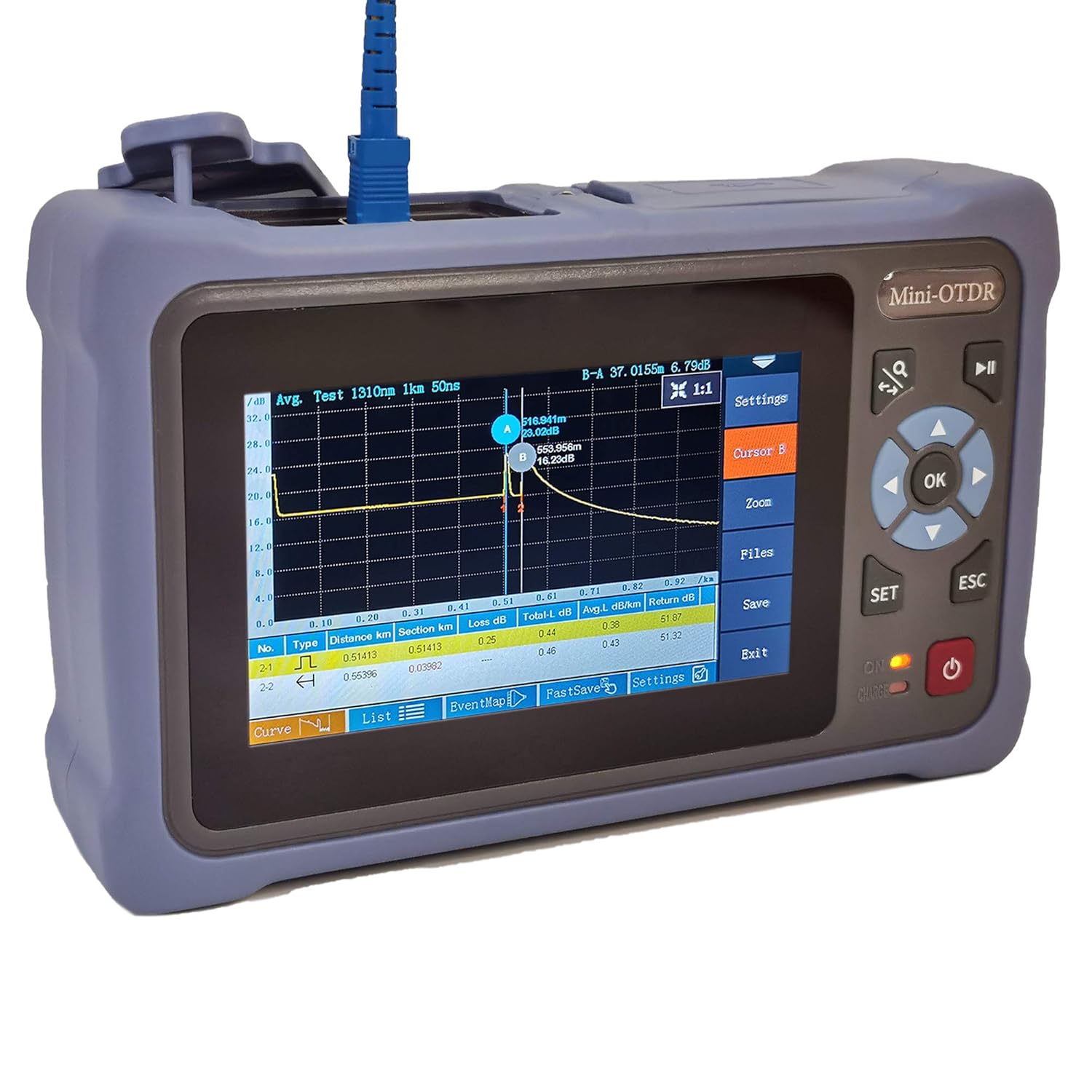

Single Mode OTDR 1310/1550nm 26/24dB 4.3 inches Touch Screen Optical Network Tester with FC/UPC-FC/APC-SX Connector F95103
Sale price
$20.50
Regular price $97.49
Skip to product information
Functions: For evaluating FTTx and access network construction and maintenance, identifying fiber breakpoints, measuring cable length, and calculating relative optical power losses.
Parameters：Mini-Pro OTDR Test Wavelength 1310/1550nm,Test Range 5m~100km,Dynamic Range 26dB/24dB (Note: it can't test spliter,if test the spliter,the Dynamic need more than 42dB. Before test or test result is not accurate,pls using the Alcohol cotton to clean the fiber connector.).Test Unit km, kft, mi ; Connector FC/UPC. With FC/APC-FC/UPC-SX
Built-In: 4.3 inches 800x480 IPS TFT-LCD;OTDR, Event Map, Power Meter, Light Source, VFL, Cable Length Measurement Tool, Cable Tracker, and RJ45 Sequencer
Internal Storage: Built-in 8G memory TF card can save up to 200,000 curves. Analysis Software included for further data analysis or processing,(Note:The Analysis Software need install on PC,Using the Analysis Software open print the test result and print)
Lifetime Friendly Customer Service,if have problem,pls contact us.
Single Mode OTDR 1310/1550nm 26/24dB 4.3 inches Touch Screen Optical Network Tester with FC/UPC-FC/APC-SX Connector F95103
Sale price
$20.50
Regular price $97.49
Shipping calculated at checkout.
Functions: For evaluating FTTx and access network construction and maintenance, identifying fiber breakpoints, measuring cable length, and calculating relative optical power losses.
Parameters：Mini-Pro OTDR Test Wavelength 1310/1550nm,Test Range 5m~100km,Dynamic Range 26dB/24dB (Note: it can't test spliter,if test the spliter,the Dynamic need more than 42dB. Before test or test result is not accurate,pls using the Alcohol cotton to clean the fiber connector.).Test Unit km, kft, mi ; Connector FC/UPC. With FC/APC-FC/UPC-SX
Built-In: 4.3 inches 800x480 IPS TFT-LCD;OTDR, Event Map, Power Meter, Light Source, VFL, Cable Length Measurement Tool, Cable Tracker, and RJ45 Sequencer
Internal Storage: Built-in 8G memory TF card can save up to 200,000 curves. Analysis Software included for further data analysis or processing,(Note:The Analysis Software need install on PC,Using the Analysis Software open print the test result and print)
Lifetime Friendly Customer Service,if have problem,pls contact us.
